Performance bar

DETAILS: Tier: Free, Premium, Ultimate Offering: Self-managed

You can display the performance bar to see statistics for the performance of a GitLab UI page. For example:

Performance bar

Available information

  • Rugged calls removed in GitLab 16.6.

From left to right, the performance bar displays:

  • Current Host: the current host serving the page.
  • Database queries: the time taken (in milliseconds) and the total number of database queries, displayed in the format 00ms / 00 (00 cached) pg. Select to display a dialog with more details. You can use this to see the following details for each query:
    • In a transaction: shows up below the query if it was executed in the context of a transaction
    • Role: shows up when Database Load Balancing is enabled. It shows which server role was used for the query. "Primary" means that the query was sent to the read/write primary server. "Replica" means it was sent to a read-only replica.
    • Configuration name: this is used to distinguish between different databases configured for different GitLab features. The name shown is the same name used to configure database connections in GitLab.
  • Gitaly calls: the time taken (in milliseconds) and the total number of Gitaly calls. Select to display a modal window with more details.
  • Redis calls: the time taken (in milliseconds) and the total number of Redis calls. Select to display a modal window with more details.
  • Elasticsearch calls: the time taken (in milliseconds) and the total number of Elasticsearch calls. Select to display a modal window with more details.
  • External HTTP calls: the time taken (in milliseconds) and the total number of external calls to other systems. Select to display a modal window with more details.
  • Load timings of the page: if your browser supports load timings, several values in milliseconds, separated by slashes. Select to display a modal window with more details. The values, from left to right:
    • Backend: time needed for the base page to load.
    • First Contentful Paint: Time until something was visible to the user. Displays NaN if your browser does not support this feature.
    • DomContentLoaded Event.
    • Total number of requests the page loaded.
  • Memory: the amount of memory consumed and objects allocated during the selected request. Select it to display a window with more details.
  • Trace: if Jaeger is integrated, Trace links to a Jaeger tracing page with the current request's correlation_id included.
  • +: a link to add a request's details to the performance bar. The request can be added by its full URL (authenticated as the current user), or by the value of its X-Request-Id header.
  • Download: a link to download the raw JSON used to generate the Performance Bar reports.
  • Memory Report: a link that generates a memory profiling report of the current URL.
  • Flamegraph with mode: a link to generate a flamegraph of the current URL with the selected Stackprof mode:
    • The Wall mode samples every interval of the time on a clock on a wall. The interval is set to 10100 microseconds.
    • The CPU mode samples every interval of CPU activity. The interval is set to 10100 microseconds.
    • The Object mode samples every interval. The interval is set to 100 allocations.
  • Request Selector: a select box displayed on the right-hand side of the Performance Bar which enables you to view these metrics for any requests made while the current page was open. Only the first two requests per unique URL are captured.
  • Stats (optional): if the GITLAB_PERFORMANCE_BAR_STATS_URL environment variable is set, this URL is displayed in the bar. Used only on GitLab.com.

NOTE: Not all indicators are available in all environments. For instance, the memory view requires running Ruby with specific patches applied. When running GitLab locally using the GDK, this is typically not the case and the memory view cannot be used.

Keyboard shortcut

Press the p + b keyboard shortcut to display the performance bar, and again to hide it.

For non-administrators to display the performance bar, it must be enabled for them.

Request warnings

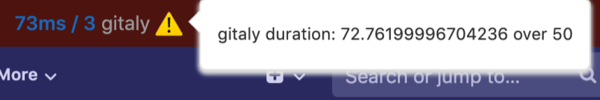

Requests that exceed predefined limits display a warning {warning} icon and explanation next to the metric. In this example, the Gitaly call duration exceeded the threshold.

Gitaly call duration exceeded threshold

Enable the performance bar for non-administrators

The performance bar is disabled by default for non-administrators. To enable it for a given group:

  1. Sign in as a user with administrator access.
  2. On the left sidebar, at the bottom, select Admin area.
  3. Select Settings > Metrics and profiling.
  4. Expand Profiling - Performance bar.
  5. Select Allow non-administrators access to the performance bar.
  6. In the Allow access to members of the following group field, provide the full path of the group allowed to access the performance.
  7. Select Save changes.
